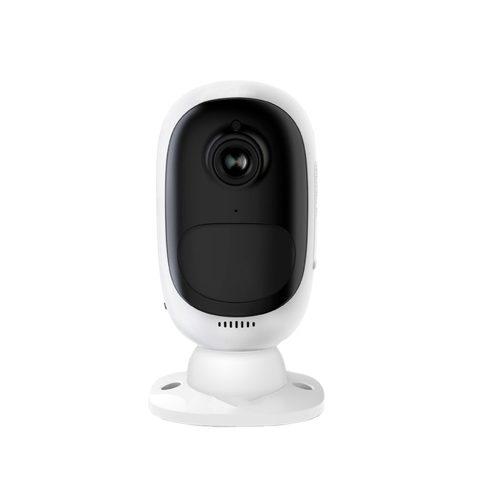

●Model: TL9055
Hardware Features :
●Image Sensor 1/2.7" CMOS  Sensor
●Display Resolution 1920 x 1080(2.0Megapixel)
●Lens  f=3.26mm Fixed,  F=2.2, With IRCUT
●Angle of View Diagonal:135° (Horizontal:  112°,  Vertical:  58°)
●PIR Detecting Distance Low: 2-4 Meters,  Mid: 4-6 Meters(Default),   High: 6-9 Meters
●PIR Detecting Angle Horizontal: 120°
●Minimum Illumination 0 Lux (With IR Illuminator)
●IR Distance 10 Meters
●Dimensions 119 x 65 x 59mm
●Weight(battery included) 310g
●Interface Built-in Micro SD socket,Built-in Microphone and speaker,Reset Button,Micro USB battery charge interface
Software Features:
●Protocols & Standards  SSL, TCP/IP, UDP, SMTP, DHCP, DNS, P2P
●Image Compression H.264
●Maximal Frame Rate  15fps
●Code rate 768Kbps ~ 2048Kbps
●Audio Two-way Audio
●Browser Supported  Don't support, support only mobile phone and PC client
●OS Supported Smart Phone:  iOS,  Android
●Standby Awaken PIR Alarm,  Remote Access,  Reset Button
●Record Mode PIR Alarm Record
WiFi :
●Wireless Standard IEEE 802.11b/g/n
●Operating Frequency 2.4GHz
●Wireless Security WEP/WPA-PSK/WPA2-PSK
Battery :
●Type Specification 18650/5200mAh/3.63V, rechargeable lithium battery
●Battery Level Indication Yes
●Ordinary Life 4 - 6 Months
●Endurance Ability Daytime:16 Hours,   Night Vision:9 Hours

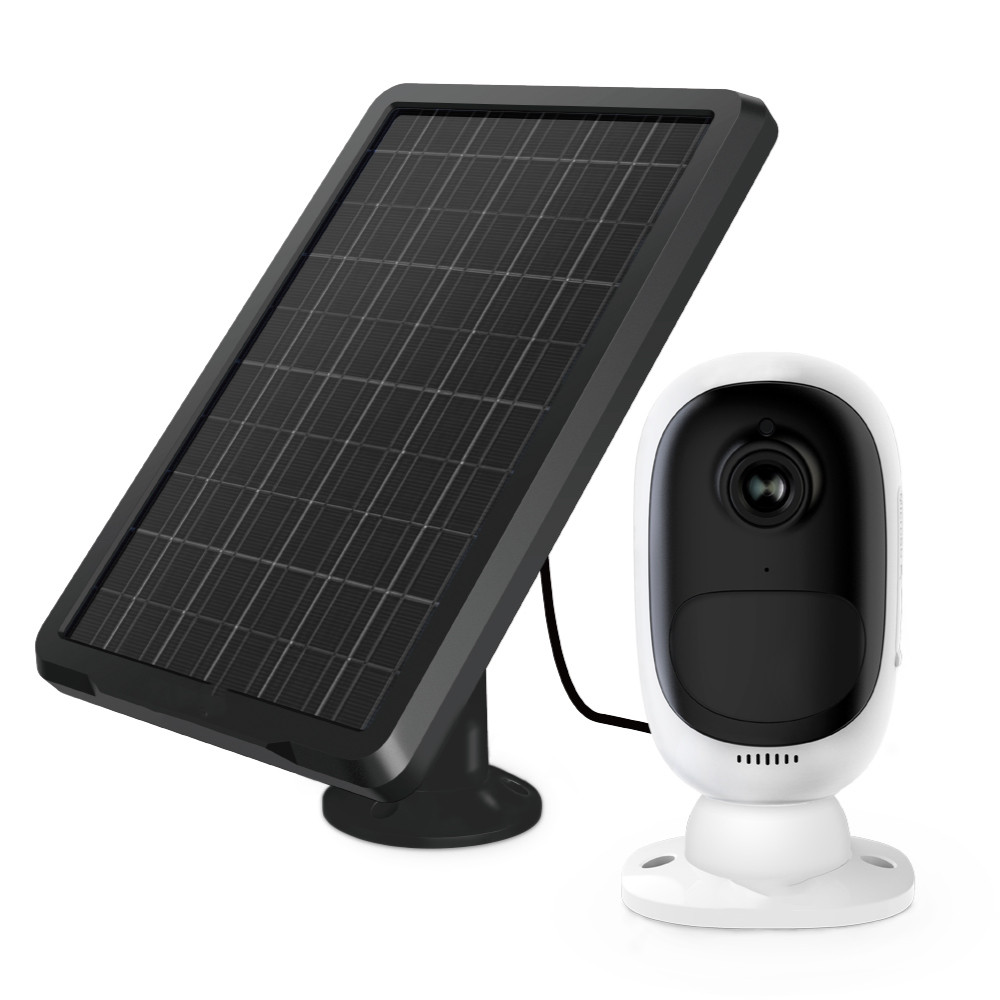

Solar Panel :
●Dimensions: 119 x 65 x 59mm
●Cable Length: 4 Meters
●Weight(battery included) :  350g
●Interface : USB port
●Maximum Voltage :  6V
●Max Current : 480mA
●Max Power :2.8W
Other Parameters :
●Temperature  Operating Temperature : -10℃~+55℃,Storage Temperature: -40℃ ~ 70℃
●Humidity Operating Humidity:  20% ~ 85%,Storage Humidity:  10% ~ 90%
●Waterproof IP65
●Certification: CE FCC APPROVED



Model	Power(Watt)	Voltage	Color	PF	Size(mm)
TL9055	2.8W	6V	White	0.95	119 x 65 x 59
