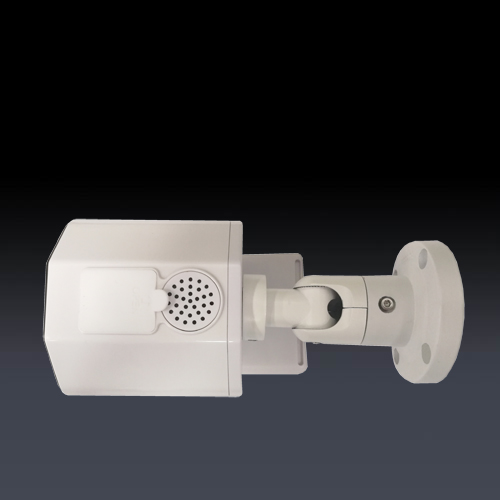

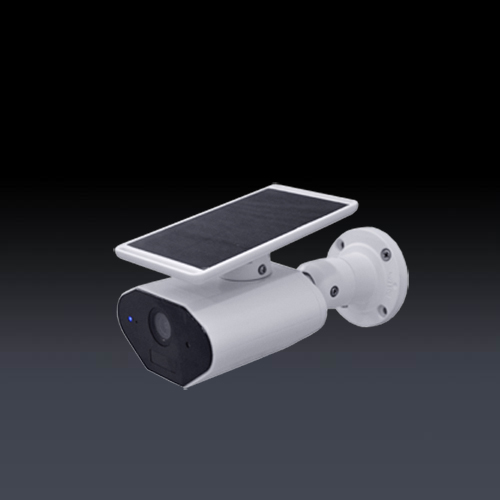

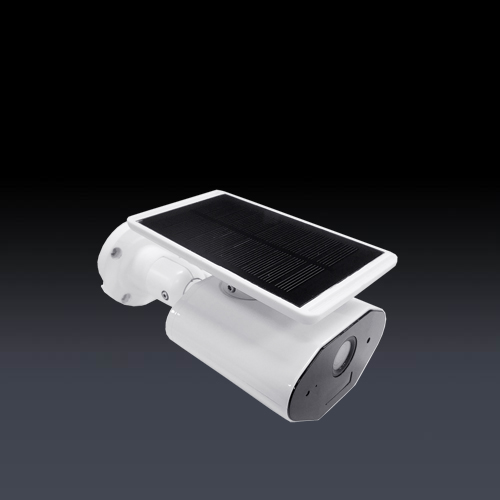

●Model:  TL9065
Hardware  Features:
●Image Sensor 1/3" 1.3MP 960p CMOS Sensor
●Display Resolution 1280P*960P
●Lens  4mm @ F2.4 , 6 layers
●Angle of View Diagonal 104°
●PIR Detecting Distance MAX 5Meters
●PIR Detecting Angle 3m/ 110°
●Minimum Illumination 1Lux
●IR Distance Max. 5Meters
●Dimensions 180mm*90mm*80mm
●Weight(battery included) 780g

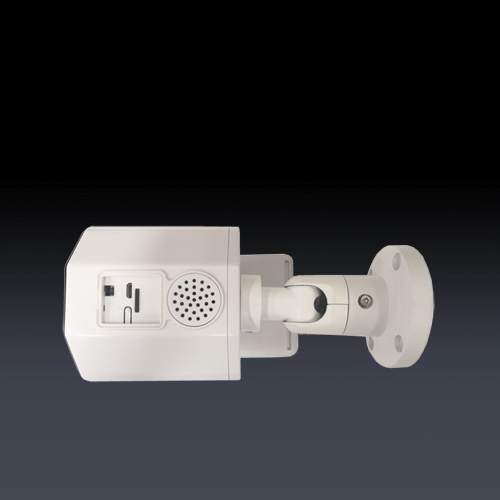

●Interface Micro USB battery charge interface,Audio input/output,Built-in Micro SD scoket
Software Features:
●Protocols & Standards TCP/IP, HTTP, DHCP
●Image Compression H.264/ motion JPEG ( When RF quality dropped )
●Maximal Frame Rate  Multi stream:960P/25fps
●Code rate 128～4096kbps TBD
●Audio 1 Channel Internal -48dB microphone,Internal speaker (8Ω/1W)
●Browser Supported  Activate camera by mobile App
●OS Supported Lite OS
●Standby Awaken SUPPORT
●Record Mode Motion detection recording,  scheduled recording/ remote recording
WiFi :
●Wireless Standard Support 802.11b/g/n
●Operating Frequency 2.4GHz
●Wireless Security WEP/WPA/ WPA2 PSK
Battery :
●Type Specification 2 pcs 18650/3200mAh/3.70V, rechargeable lithium batteries Including
●Battery Level Indication yes
●Ordinary Life 2-3 months
●Endurance Ability Daytime: 16hours,Night vision: 9hours

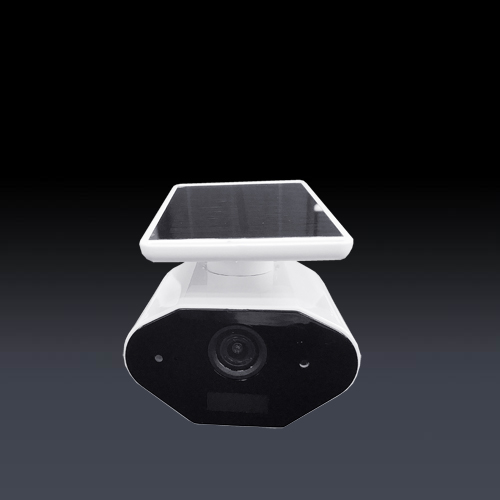

Solar Panel :
●Power 1W 5V 200mA
●Adaptor DC5V 1A+- 10%
Other Parameters :
●Temperature  Operating Temperature : -20℃~+55℃,Storage Temperature: -20℃ ~ 70℃
●Humidity Operating Humidity:  20% ~ 85%,Storage Humidity:  10% ~ 90%
●Waterproof IP65
●Certification: CE FCC APPROVED

Model	Power(Watt)	Voltage	Color	PF	Size(mm)
TL9065	1W	3.7V	White	0.95	175*90*80
